48v/60v/72v 1500w Activa Hybrid kit

Motor
● Power (Continuous Power) : 1.5Kw
● Type: DC Brushless Motor
● Wheel Size: 10 inch
● Speed: 40 – 60km/h
● Torque: 30 N.m
● Max. Working Temperature: 80 ℃
● Waterproof Grade: IP54
● Weight : 7 – 8kg
● Efficiency : 85%
● Warranty : 1Year* (Manufacturing defects)

Motor (Drive / Controller)
● Compatible Voltage : 48v / 60v /72v
● Rated current: 35A
● Peak current : 65A
● Max Power : 2.1Kw
● Waterproof Grade: IP64
● Regeneration : Yes
● Type : sine wave
● Warranty : 1Year* (Manufacturing defects)

Other included accessories : Combined throttle, LED switch, Controller wiring, Mounting bolts.

NOTE:

• Battery and charger is not included in this kit

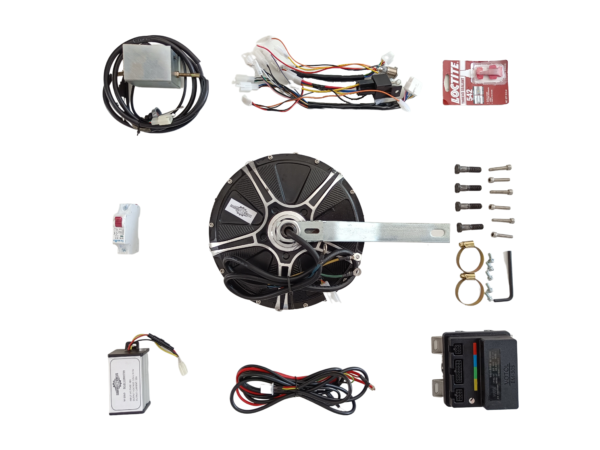

• All the parts shown in the picture is provided in this kit.
• Speed and mileage depends on type of battery used.

Key Feature –
1. Independent Electric and Petrol Drive
2. No changes required in vehicle for Installation
3. Easy to Install
4. 60 km of top speed in pure Electric Drive
5. Compatible with 48v, 60v & 72v battery pack
