24v 250W cycle kit with li-ion battery

Motor Specifications:

• Rated Voltage: 24 Volt DC
• Rated Power: 250W
• Ambient temperature: -20°C — 45°C
• Turn potential: 5V
• Brake potential: Low potential brake
• RPM (after Reduction) – 300rpm
• Rated Current – 10.41A
• Full load current – 14.2A
• Under voltage protection: 20.5V
• Current Limiting protection: 20A
• Torque Constant – 9 Nm (90 kg-cm)
• Torque stall – 40 Nm (400 kg-cm)
• Sprocket: 9Tooth only fits #410 bicycle chains

Controller Specifications:

• Voltage: DC 24V
• Under Voltage: 20V±1
• Current Limit: 21A ±1
• Level Brake: low level
• Turn Voltage: 1.1-4.3V
• Phase Angle: 60/120
• Power: 250W
• Includes attachments for motor, accelerator, brake, battery, battery charging, brake light, power lock.

Battery Specifications:

• Watt Hour: 24*10 = 240Wh
• Lower Cutoff Voltage: 21v
• Upper Cutoff Voltage: 29.4v
• Nominal Voltage: 25.9v
• BMS: 7s BMS With All Protections
• Of Cell: 28
• Cell Rating: 3.7v 2550mah Li-ion cell

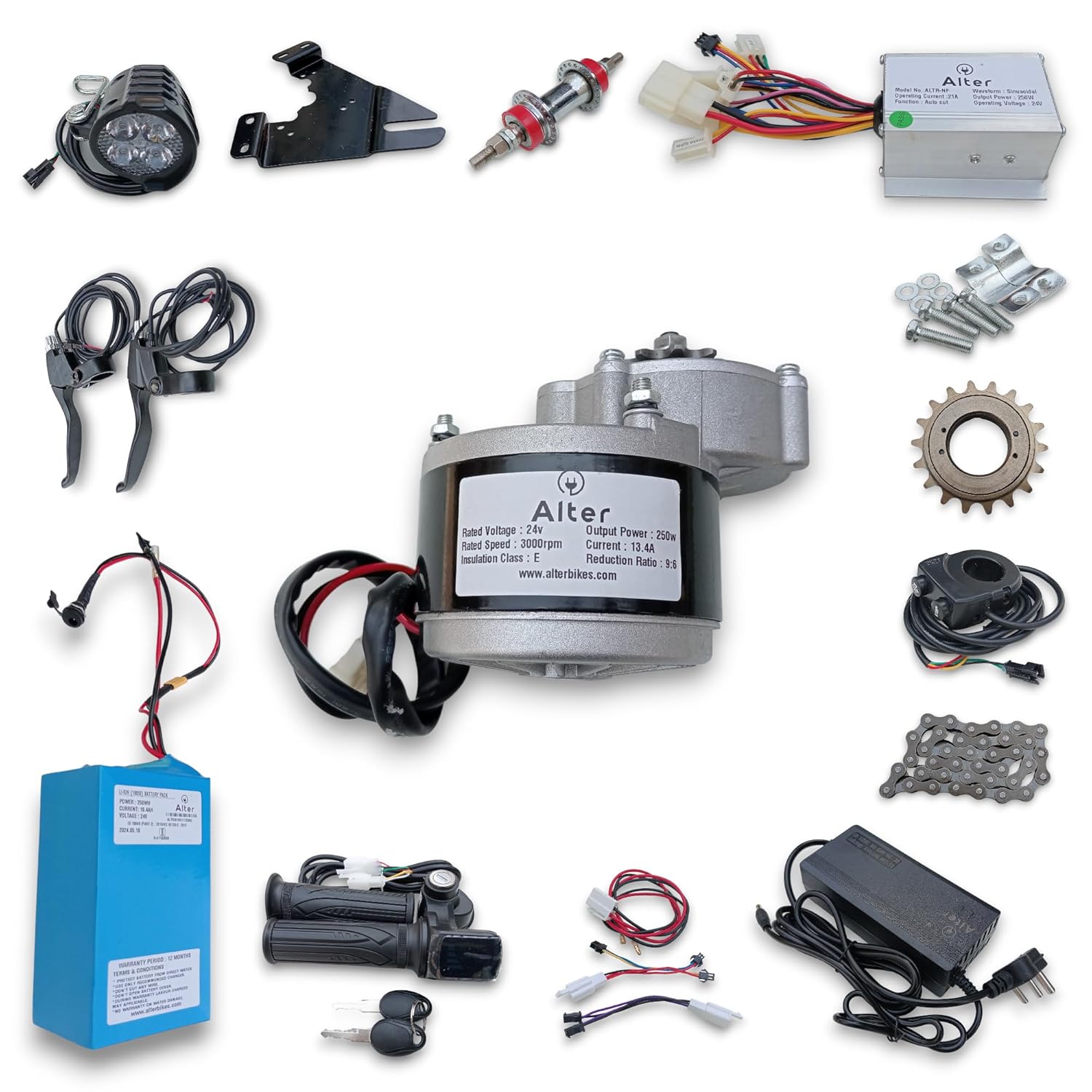

Package Includes:

• 1 x E-bike 24V 250W DC Geared Motor
• 1 x E-bike Motor Controller 24V 250W
• 1 x Li-ion Charger
• 1 x Long Axle
• 1 x Chain
• 1 x Free Wheel
• 1 x Throttle Set
• 1 x Led Head Light With Inbuilt Horn
• 2 x Brake lever
• 1 x Mounting Plate
• 1 x Key Switch
• 1 x Charging port
• 1 x Nut Bolts
• 1 x Pouch of Couplers
• 1 x Free Wheel coupler
• 1 x Reflector
• 1 x Double Threaded Hub
• 1 x Anti clock Free Wheel
• 1 x Led Fog Light
• 1 x 24v 10ah ion Soft Pack Battery

Note:

This kit includes battery.
This 24v 250w motor is best suited for single loading.
Maximum speed of motor is 22km/hr.
